Description
Cradle for hydraulic cylinder, length 200mm, or 230mm, or 280mm, inner width 120mm, or 135mm, or 155mm, or 185mm, steel with raw finish or steel with painting
Used with hydraulic cylinder for support adjustment
|

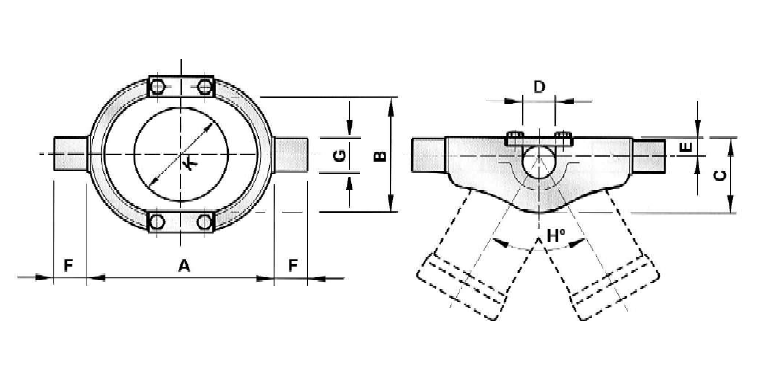

Specifications |
||||||||||||
|
P/N |
A |
B |
C |
¢D |
E |
F |
¢G |
H |
¢K |
Weight |
Material |
Surface |
|
HCC0001 |
200 |
120 |
77 |
35 |
25 |
35 |
35 |
65° |
95 |
5kg |
Steel |
Raw |
|
HCC0002 |
230 |
135 |
97 |
35 |
28 |
40 |
40 |
75° |
112 |
9kg |
Steel |
Painted |
|
HCC0003 |
230 |
155 |
107 |
40 |
31 |
40 |
40 |
60° |
124 |
10.5kg |
Steel |
Painted |
|
HCC0004 |
280 |
185 |
125 |
45 |
40 |
45 |
50 |
60° |
150 |
15kg |
Steel |
Raw |
