Trailer Curtain Side Parts Composition: A Complete Guide

When it comes to trailer curtain side parts, each component plays a crucial role in ensuring durability, security, and smooth operation. Whether you’re replacing parts or maintaining your trailer, understanding the composition and function of key elements like side curtain tensioners, reduction gears, rails, rollers, and buckles is essential.

This guide covers:
✔ Functions of each curtain side part
✔ Materials & durability comparisons
✔ Maintenance & replacement tips

Let’s dive in!

1. Side Curtain Tensioners: The Backbone of Tarp Stability

1.1 Types of Tensioning Systems

Modern curtain side trailers utilize three primary tensioner designs:

1. Spring-Loaded Tensioners

   • Automatically maintain constant tension

   • Ideal for long-haul operations where manual adjustment isn’t practical

   • Typical lifespan: 5-7 years with proper maintenance

2. Ratchet Tensioners

   • Manual adjustment for precise tension control

   • Preferred for specialized loads requiring exact tautness

   • Maximum adjustability but requires driver intervention

3. Hydraulic Tensioners

   • Premium systems for heavy-duty applications

   • Maintains perfect tension regardless of temperature changes

   • Common in extreme climate operations (-40°C to +50°C)

1.2 Material Composition Analysis

The effectiveness of tensioners largely depends on their material construction:

Case Study: A European logistics company reduced tarp replacement costs by 32% after switching to stainless steel tensioners in their Baltic Sea routes.

1.3 Maintenance Protocol

• Weekly: Visual inspection for deformation or rust

• Monthly: Lubrication of moving parts with lithium-based grease

• Annually: Complete disassembly and bearing replacement

2. Reduction Gear Mechanisms: Precision in Motion

2.1 Gear Ratio Fundamentals

The reduction gear’s primary function is to convert high-speed, low-torque input into controlled, powerful curtain movement:

• Standard Ratios:

  • 5:1 for light-duty urban operations

  • 8:1 for general freight

  • 12:1 for heavy industrial curtains

Technical Insight: A properly sized reduction gear can increase curtain lifespan by up to 40% by preventing sudden stops/starts.

2.2 Cutting-Edge Gear Technologies

Recent advancements include:

1. Helical Gear Designs

   • 30% quieter operation

   • 15% more efficient power transfer

   • Reduced vibration transmission

2. Sealed Lubrication Systems

   • Maintenance-free for up to 3 years

   • Prevents contamination in dusty environments

   • Temperature-stable performance (-30°C to +120°C)

2.3 Failure Prevention Checklist

• Monitor for unusual noises during operation

• Check for oil leaks in hydraulic systems

• Inspect gear teeth for pitting or wear every 6 months

3. Curtain Rail Systems: The Guidance Network

3.1 Rail Profile Engineering

Modern curtain rails feature optimized designs:

1. C-Channel Rails

   • Most common design

   • Accommodates standard roller sizes

   • Easy to clean and maintain

2. Double-Flange Rails

   • Prevents curtain disengagement

   • Essential for high-wind operations

   • 25% more material than standard rails

3. Low-Friction Polymer Rails

   • Ultra-smooth operation

   • Self-lubricating properties

   • Ideal for food-grade transport

3.2 Materials & Types

Installation Tips

• Ensure proper alignment to prevent tarp jamming

• Use UV-resistant seals to protect the rail from sun damage

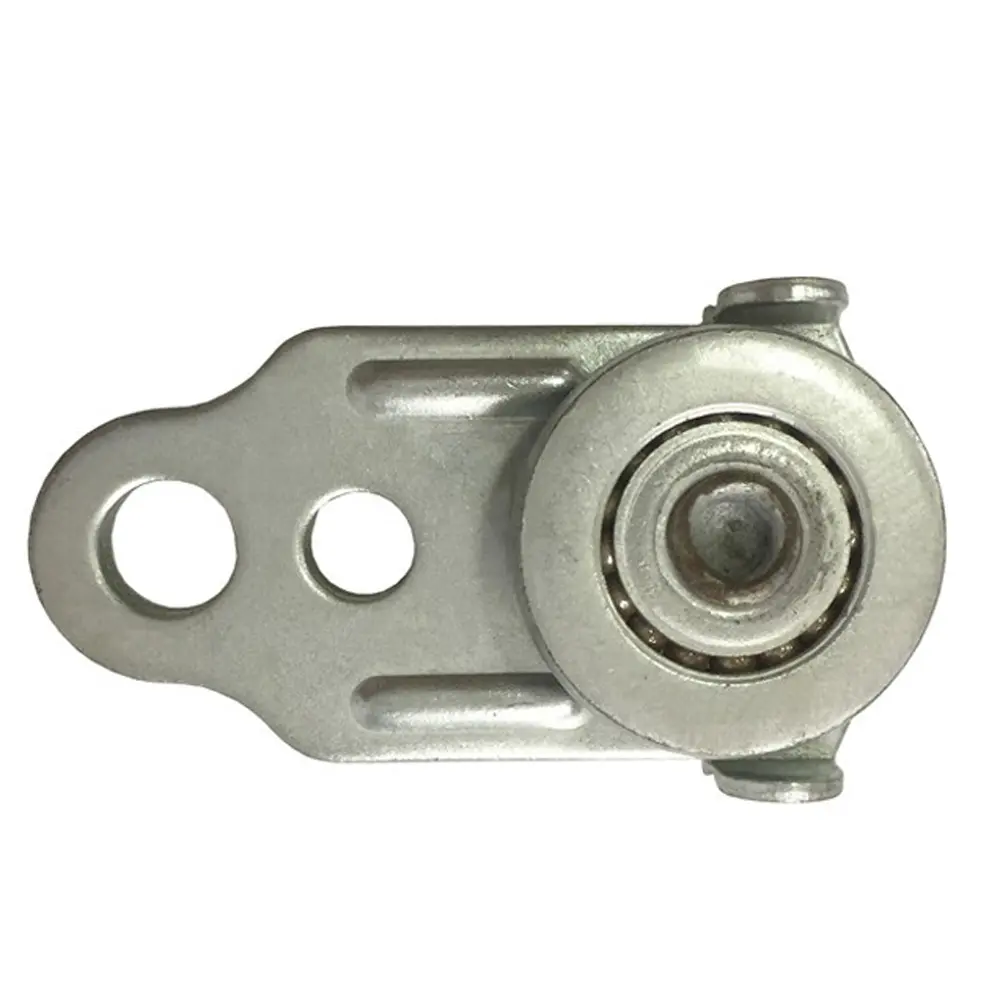

4. Roller Assemblies: The Friction Solution

4.1 Bearing Technology Comparison

Roller performance depends on its bearing system:

Pro Tip: Ceramic hybrid bearings can reduce rolling resistance by 35%, significantly easing curtain operation.

4.2 Roller Material Advancements

• Polyurethane-coated rollers: 3x more durable than standard nylon

• Stainless steel rollers: Perfect for corrosive environments

• Composite rollers: Combine strength with vibration damping

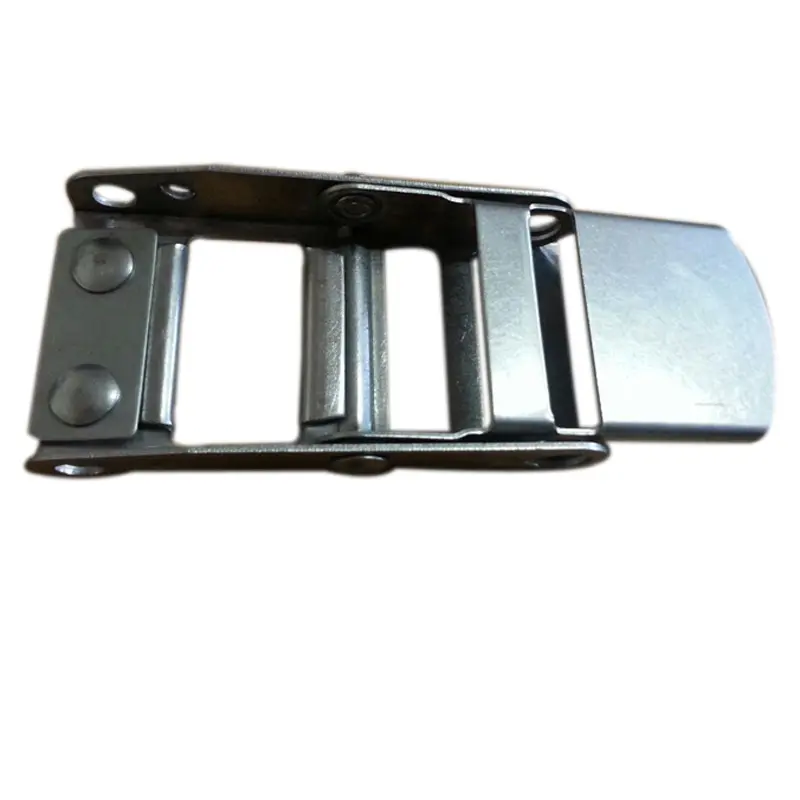

5. Buckle & Fastener Systems: The Security Layer

5.1 Load Testing Standards

Quality buckles must meet:

• EN 12195-2 for load restraint

• DOT 49 CFR 393.110 for North America

• AS/NZS 4380 for Australian markets

Safety Fact: Proper buckle selection can increase cargo security by up to 60% compared to inferior fasteners.

5.2 Smart Fastening Solutions

Emerging technologies include:

1. RFID-Enabled Buckles

   • Digital load monitoring

   • Tamper evidence recording

   • Integration with fleet management systems

2. Self-Tensioning Systems

   • Automatic adjustment during transit

   • Compensates for load shifting

   • Reduces driver workload

Comprehensive Maintenance Schedule

Daily:

• Visual inspection of all components

• Quick lubrication of exposed moving parts

Weekly:

• Torque check on all fasteners

• Tension verification

• Rail cleaning

Monthly:

• Bearing inspection

• Gear lubrication

• Structural integrity check

Annual:

• Complete system overhaul

• Replacement of wear components

• Professional alignment check

Conclusion: Optimizing Your Curtain Side System

By understanding these five critical components in depth, fleet operators can:

1. Extend system lifespan by 50-70%

2. Reduce maintenance costs through proactive care

3. Improve operational efficiency with proper component matching

4. Enhance safety through regular inspections

Ready to Upgrade Your Trailer Curtain Side Parts?
? Contact us for bulk orders of durable and high-quality curtain side assemblies.
