- Length: 3 meters，
- Height 2 centimeter,
- Width: 15 centimeter
- Materia:zinc-plated steel
- Plate thickness is 0.078″
- Weight is 12LB
- Item Number: CH0003MP-F-C

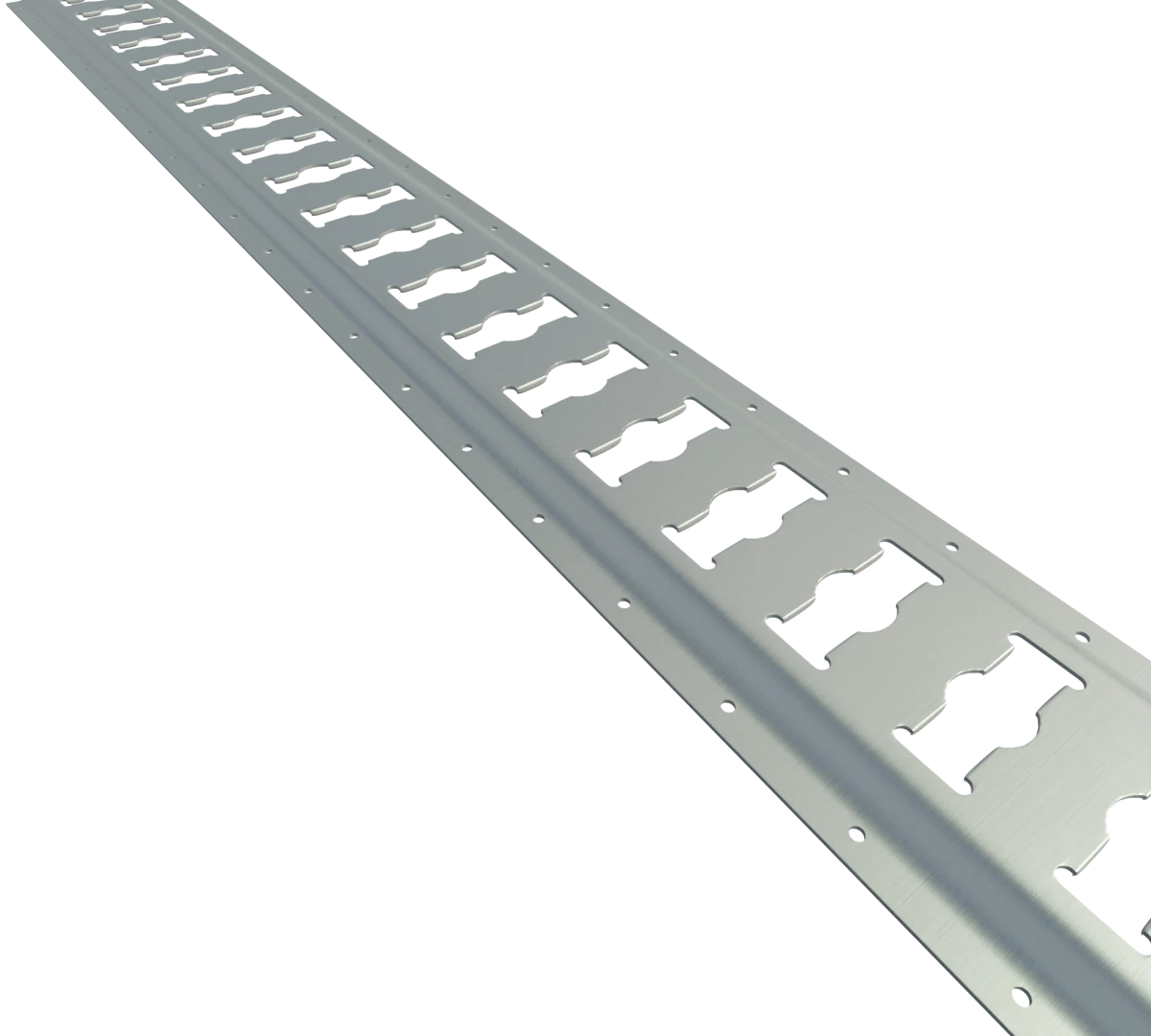

F Track Tie Down Rail
F Track is one of cargo control systems, it is named E-track in North America, it can make moving and storing easier on trailers, racks, pickups and trucks, it’s easy to install through screw holes. F-Track with tie down studs and straps, it is the fastest & safest way to fasten items.
How to assembly and amount a F-track?
- Before installing F-track, prepare the necessary drill, screwdriver, level, expansion bolt, and necessary tape measure.
- Determine the position of F-track, which can be marked with a pencil.
- Using an electric drill to drill the holes required for installing the F-track on the wall of trailer or truck, and the size of the holes drilled by the electric drill should match the size of the screws used to fix the hanging bracket.
- Installation of the F track: to screw and fix the F-track to the wall or floor of vehicle
How to set up tie down studs on F-track rail?
Choose corrected pattern and set studs onto the F track, placing them through the holes, fix the studs and check if it is steady after mounting.
What is the difference between L track and F track?
They use different fittings, usually, F track is used when items are fastened to floor of cargo, L track is used when small items are hung and fixed onto it, although they both can secure any kind of item within a truck or trailer.
What’s size for Item number CH0003MP-F-C?
- Dimensions: L 120 in，H 0.5 in, W 5 in
- Material is steel alloy, zinc-plated
- Plate thickness is 0.078 inch
- Weight is 11.68 LB

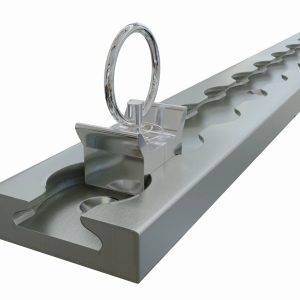

Related Products： L-track
