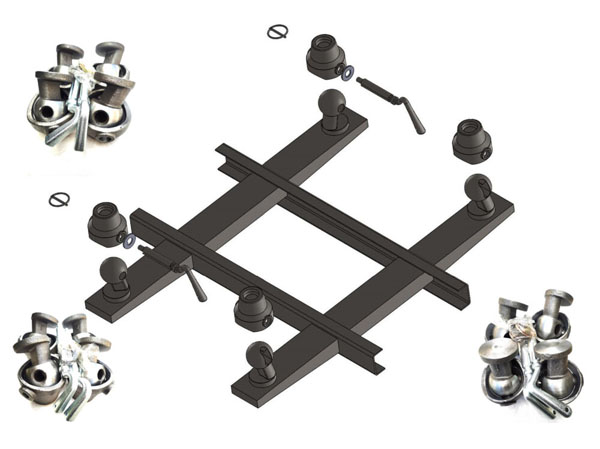

Tipper body parts dump truck ball joint is a heavy-duty spherical bearing that connects the dump truck’s hydraulic lifting system. It acts as a pivot point, allowing the truck bed to tilt smoothly during loading and unloading. Made from high-strength materials like forged steel or alloy, tipper spheres are engineered to withstand extreme pressure, heavy loads, and harsh environmental conditions.
Key Functions:
- Enables smooth tilting of the dump truck bed.
- Distributes stress evenly across the hydraulic system.
- Reduces wear and tear on other components.
Why Tipper Spheres Matter for Your Dump Truck
Tipper spheres are often overlooked, but their failure can lead to costly downtime or even accidents. Here’s why they’re essential:
- Safety
A worn-out tipper sphere can cause instability during tilting, increasing the risk of tipping over or hydraulic leaks. High-quality spheres ensure stable and controlled movements. - Efficiency
Smooth operation reduces strain on the hydraulic pump, improving fuel efficiency and lowering maintenance costs. - Durability
Premium tipper spheres resist corrosion, abrasion, and deformation, even under heavy loads or in extreme temperatures. - Compliance
Many industries require equipment to meet safety standards (e.g., ISO 9001). Using certified components helps avoid penalties.
Types of Tipper Spheres
1. Small Diameter Tipper Spheres (50mm – 75mm)
Key Specifications
- Diameter: 50mm – 75mm
- Material: Forged Steel with Anti-Corrosion Coating
- Load Capacity: Up to 15 Tons
- Applications: Light-duty trucks, agricultural tippers, municipal waste vehicles.
Featured Products
- Model HC-TS50: 50mm Diameter, Ideal for Small Farm Trucks
- Model HC-TS75: 75mm Diameter, Perfect for Urban Waste Management
Why Choose Small Diameter?
- Lightweight design reduces fuel consumption.
- Easy installation for quick maintenance.
2. Medium Diameter Tipper Spheres (80mm – 120mm)
Key Specifications
- Diameter: 80mm – 120mm
- Material: Heat-Treated Alloy Steel
- Load Capacity: 15–35 Tons
- Applications: Construction trucks, asphalt transport, mining support vehicles.
Featured Products
- Model HC-TS100: 100mm Diameter, High Durability for Daily Use
- Model HC-TS120: 120mm Diameter, Enhanced Stability for Rough Terrain
Why Choose Medium Diameter?
- Balances strength and cost efficiency.
- Versatile for most industrial scenarios.
3. Large Diameter Tipper Spheres (130mm – 180mm)
Key Specifications
- Diameter: 130mm – 180mm
- Material: Reinforced Alloy Steel with Chromium Coating
- Load Capacity: 35–60+ Tons
- Applications: Mining dump trucks, offshore logistics, heavy earthmoving projects.
- Applications: Mining dump trucks, offshore logistics, heavy earthmoving projects.
Featured Products
- Model HC-TS150: 150mm Diameter, Extreme Load Resistance
- Model HC-TS180: 180mm Diameter, Ideal for Mining and Quarry Operations
Why Choose Large Diameter?
- Handles extreme weights and harsh environments.
- Minimizes wear on hydraulic systems.
4. Custom Diameter Tipper Spheres
Key Specifications
- Diameter: Tailored to Client Requirements
- Material: Customized Alloys (Stainless Steel, Titanium Blends, etc.)
- Load Capacity: Designed for Unique Projects
- Applications: Military vehicles, specialized mining equipment, retrofitted trucks.
Customization Options
- Adjustable dimensions (50mm–250mm).
- Optional coatings (zinc, epoxy, or thermal-resistant finishes).
Why Choose Custom Sizes?
- Perfect fit for non-standard equipment.
- Optimized performance for niche industries.
Diameter Comparison Table
| Diameter Range | Best For | Load Capacity | Top Model |
|---|---|---|---|
| 50mm – 75mm | Light-duty, Agriculture | ≤15 Tons | HC-TS75 |
| 80mm – 120mm | Construction, Mining Support | 15–35 Tons | HC-TS120 |
| 130mm – 180mm | Heavy Mining, Offshore | 35–60+ Tons | HC-TS180 |
| Custom Sizes | Specialized Applications | Custom | Contact Our Team |
How to Select the Right Diameter
- Check Your Truck Manual: Match the sphere diameter to the manufacturer’s specifications.
- Assess Workload: Larger diameters are critical for heavy or frequent loads.
- Environmental Factors: Opt for corrosion-resistant coatings in humid or salty conditions.
Why Buy from Hangcheng Parts?
- Precision Engineering: Each sphere is CNC-machined for perfect alignment.
- Certified Quality: ISO 9001-compliant, with 12-month warranty.
- Global Support: Fast shipping to over 50 countries.
If you need to order in bulk or customize tipper sphere, please contact us
