Truck Door Lock Guide: Choosing the Right Outer Diameter (16mm, 22mm, 27mm, 34mm) for Optimal Security

January 9, 2026

Introduction: Why the Millimeter Matters in Your Door Lock

In the critical task of securing trailer and truck doors, every component’s specification counts. While lock mechanisms and materials are often discussed, one foundational yet frequently overlooked specification is the outer diameter (OD) of the truck door lock tube or housing. This precise measurement, denoted in millimeters, is the linchpin of compatibility, physical strength, and overall security. Selecting an incorrect diameter can lead to improper fit, weakened door integrity, and a vulnerable cargo space.

This definitive guide moves beyond generic advice to focus on the standard millimeter classifications you will encounter in the industry: 16mm, 22mm, 27mm, and 34mm. We will explore the specific applications, security profiles, and selection criteria for each size, empowering you to make a precise, informed decision for your fleet’s door hardware.

Part 1: Importance of Truck Door Lock Tube Size

The lock tube is the cylindrical housing that passes through the door panel, connecting the external key cylinder or handle to the internal latching mechanism. Its outer diameter (OD) is a critical design parameter because it determines:

Structural Integrity: The OD directly influences the wall thickness and material mass of the tube, which in turn determines its resistance to brute-force attacks such as prying, drilling, and impact.
Door Compatibility: The tube must match the pre-drilled hole in the door. A mismatch—either too loose or requiring modification—compromises installation security and weatherproofing.
Mechanical Suitability: Larger diameters often accommodate more robust internal components, such as heavier-duty cams and springs, suitable for high-cycle use or extreme environments.

Understanding these millimeter-specific categories is essential for procurement managers, maintenance technicians, and trailer builders.

Part 2: Classifying Truck Door Lock Size by Outer Diameter

The following classification is based on common industry standards, with each size catering to distinct applications and security needs.

Outer Diameter (OD)	Inch Equivalent (Approx.)	Primary Applications & Security Profile
16 mm	~5/8″	Light-Duty / Interior Applications. Commonly used for toolbox locks, compartment doors on utility vehicles, interior cab compartments, or lighter-weight trailer accessories. Offers basic security for low-risk storage.

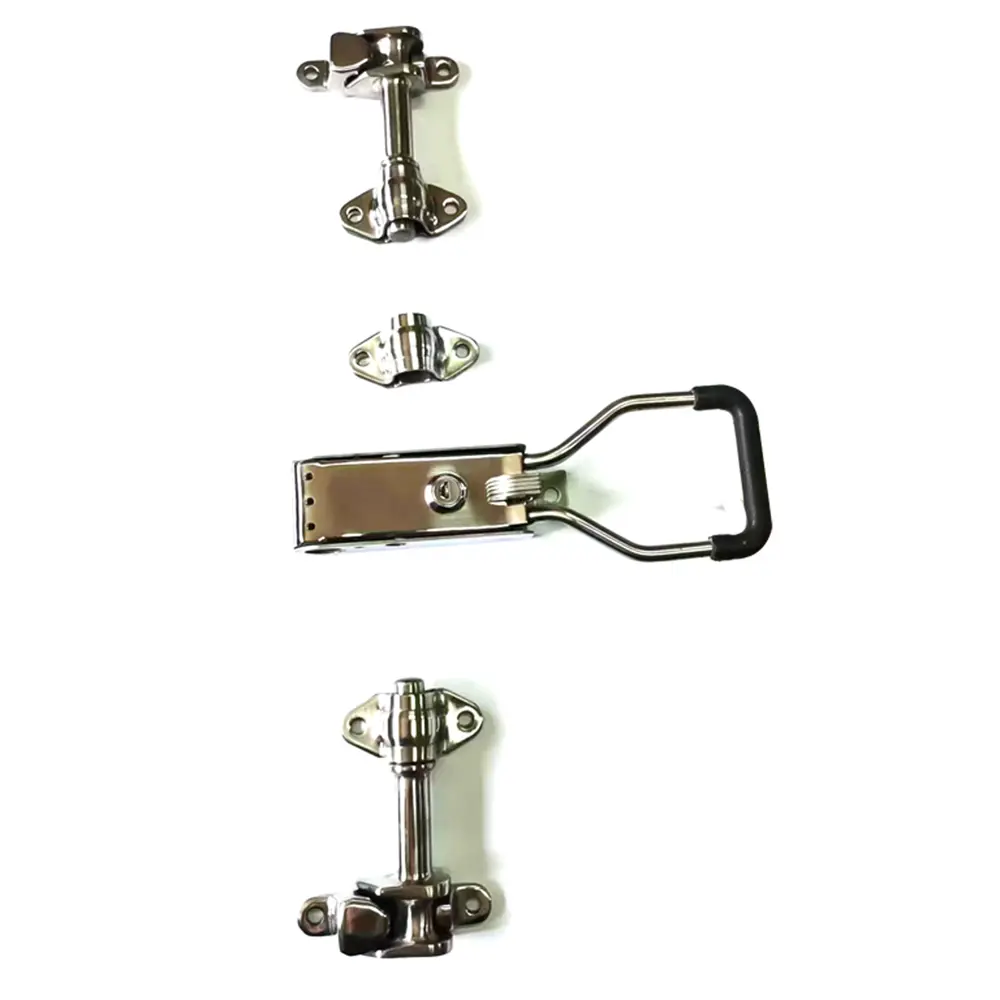

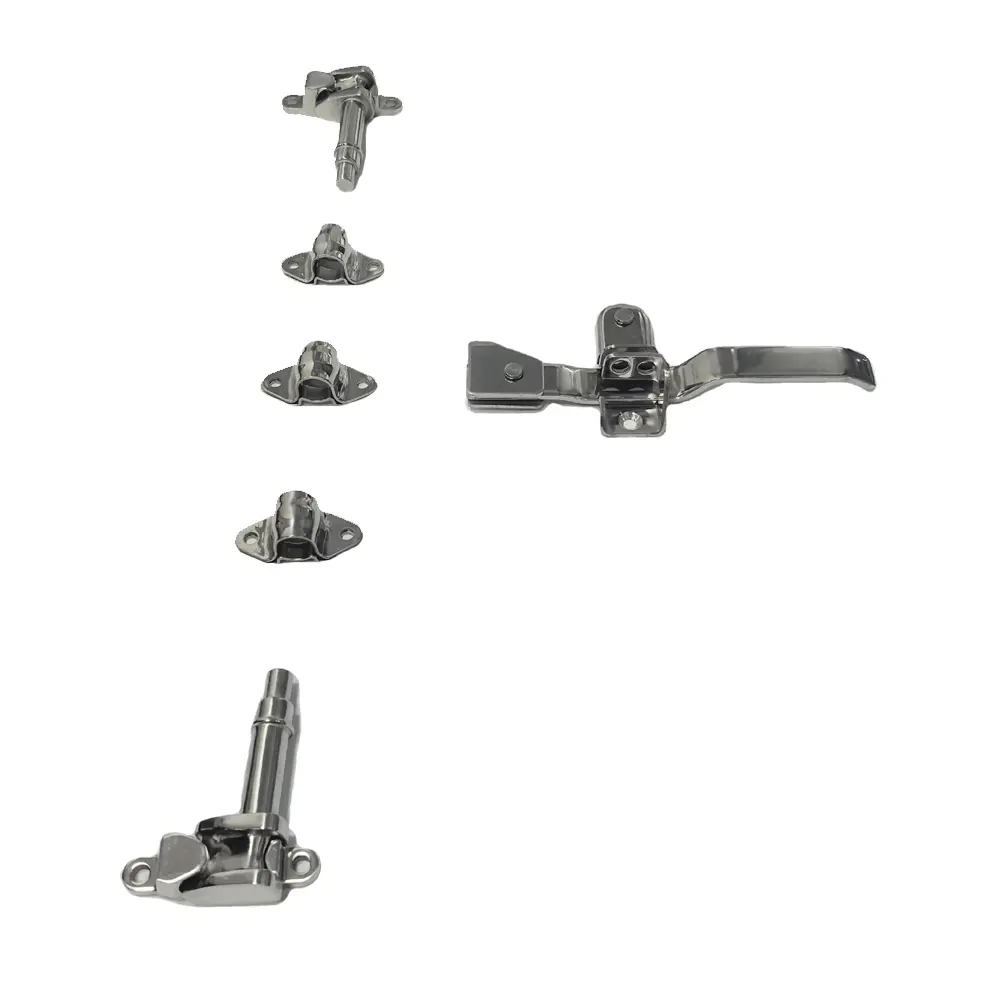

22 mm	~7/8″	Medium-Duty / Standard Trailers. A versatile and widely adopted size for many standard freight trailer doors, shipping container locks, and medium-duty truck doors. Provides a strong balance of security, availability, and value for general cargo transport.

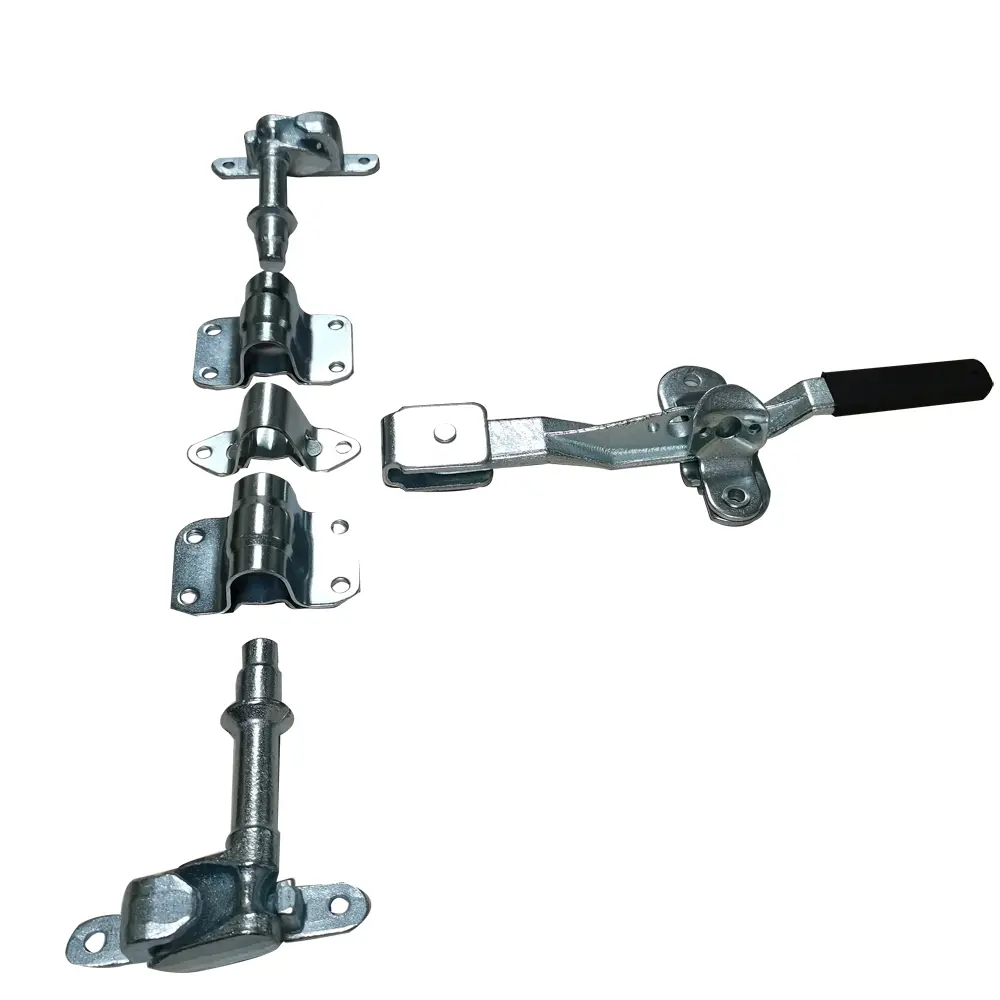

27 mm	~1-1/16″	Heavy-Duty / Enhanced Security. The go-to choice for heavy-duty semi-trailer doors and high-security applications. The increased diameter allows for thicker walls, significantly boosting resistance to drilling, prying, and forced entry. This is often considered the industry standard for premium, high-cycle use.
34 mm	~1-5/16″	Extra Heavy-Duty / Maximum Security. Designed for the most demanding applications, such as armored transport, high-value cargo units, or doors in high-risk regions. This size offers the highest level of physical defense, frequently incorporating advanced features like hardened steel inserts and complex internal mechanisms.

Pro Tip: Always verify the exact hole size in your door before ordering. The required hole diameter is typically 0.5mm to 1mm larger than the lock tube’s OD to allow for a proper fit and any protective coating.

Part 3: How to Choose the Correct Truck Door Lock Outer Diameter

Selecting the right OD requires a systematic assessment of your specific needs.

Step 1: Assess the Application and Security Requirements.

For toolboxes, interior compartments, or low-value storage: The 16mm option provides sufficient, cost-effective security.
For general freight, dry vans, and standard shipping containers: The 22mm diameter delivers reliable, tried-and-tested security for everyday logistics.
For high-value cargo, cross-border transport, or fleet trailers with high utilization: The 27mm heavy-duty standard is highly recommended for its superior strength and durability.
For maximum security needs, hazardous material transport, or in theft-prone areas: The 34mm option provides the ultimate physical barrier and deterrent.

Step 2: Measure Your Existing Hardware (For Replacement).
Accurate measurement is crucial for a direct replacement.

Use a digital caliper to measure the OD of your current lock’s tube.
If the lock is removed, measure the diameter of the mounting hole in the door itself. Choose a lock with an OD slightly smaller than this hole measurement.
Match your measurement to the closest standard size (16mm, 22mm, 27mm, 34mm).

Step 3: Evaluate Door Construction and Thickness.
The lock tube must be long enough to pass through the entire door.

Door Thickness: Measure the thickness of your door panel. The “barrel length” of the lock you select must be appropriate for this dimension.
Door Material: Heavier-duty doors can fully support the larger mounting hardware that accompanies 27mm and 34mm locks.

Step 4: Consider Total Cost of Ownership.
While a 16mm lock may have a lower initial cost, a 27mm lock on a main cargo door offers far better long-term value through enhanced durability, reduced risk of break-in, and longer service life under heavy use.

Part 4: Beyond Truck Door Lock OD: Critical Features of a Quality Lock

While OD is fundamental, ensure your chosen lock excels in these areas:

Material & Finish: Opt for locks made from hardened steel with anti-corrosion coatings (zinc, chrome) or stainless steel for harsh environments.
Internal Mechanism: Look for features like anti-pick pins, anti-drill plates, and robust springs.
Mounting System: A secure lock uses large interior washers or back plates to distribute force and prevent the lock from being punched out.

Conclusion: Precision Selection for Uncompromised Security

Choosing a truck door lock is an engineering decision. By understanding the specific roles and strengths of the 16mm, 22mm, 27mm, and 34mm outer diameter classifications, you can move beyond a one-size-fits-all approach. Matching the precise millimeter specification to your door’s function and required security level ensures optimal performance, longevity, and peace of mind.

Investing in the correct diameter is a small detail that forms the foundation of your cargo’s security.
